🌐 WAN Failover with up to 4 Links #

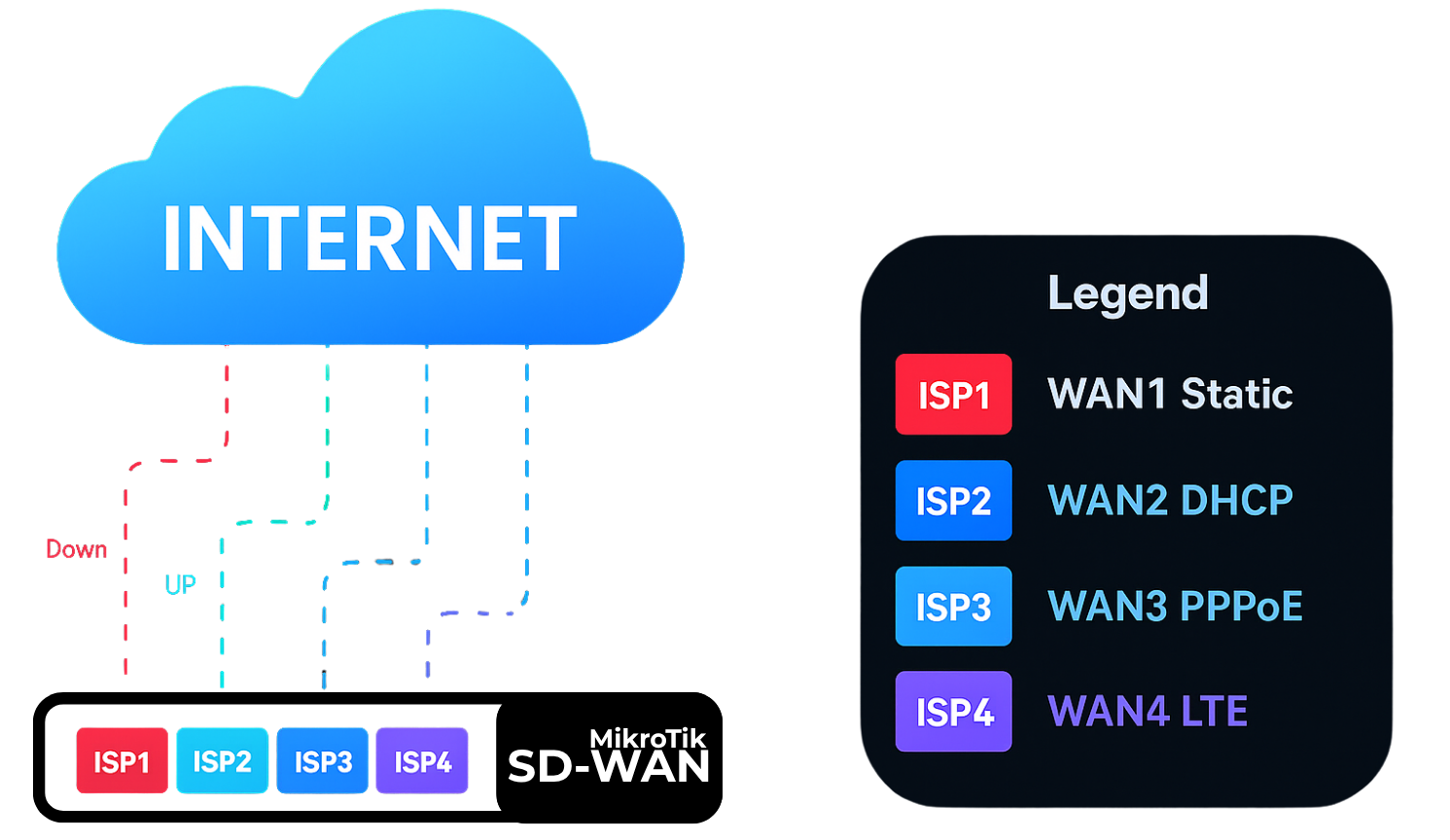

The MikroTik SD-WAN platform supports intelligent failover across up to 4 WAN links, ensuring high availability for your network connection. Switching happens directly on the MikroTik, so it keeps working even if the router loses contact with the platform.
Each link is continuously monitored by latency and packet loss to a monitoring IP. A script on the router (SDWAN:-Monitoring-WAN) evaluates the links every minute.
📡 Monitoring IPs #
Each link pings a different public IP, so a single DNS outage never brings all links down. You can change it in the Monitoring IP (optional) field.
| Link | Default monitoring IP |
|---|---|
| WAN 1 | 8.8.4.4 |
| WAN 2 | 1.0.0.1 |
| WAN 3 | 208.67.220.220 |
| WAN 4 | 9.9.9.9 |
⚙️ Configuration Requirements #
- Between 2 and 4 WAN links.
- Each WAN link must be pre-configured on MikroTik with an active gateway (DHCP client, static, PPPoE, LTE and VLAN interfaces are supported).
- Any manual failover scripts or netwatch rules should be removed to avoid conflicts.
- Ensure all links have active internet access before activation.
- Monitoring IPs must be valid IPv4 addresses and cannot be repeated.
🔀 Failover or Load Balancer? #
The same screen offers two WAN modes: Failover (one active link, others on standby) and Load Balancer (traffic split among links by percentage). See Load Balancer.
🛠️ Updates & Support #
Changes to failover settings may take up to 5 minutes to be fully applied. Link status, latency and loss are shown on the device page and on WAN Health.
